Static Grinding Roller

Availability:
Quantity:
  • MY2YJ8

  • MINGYANG

Product Description

Product Introduction

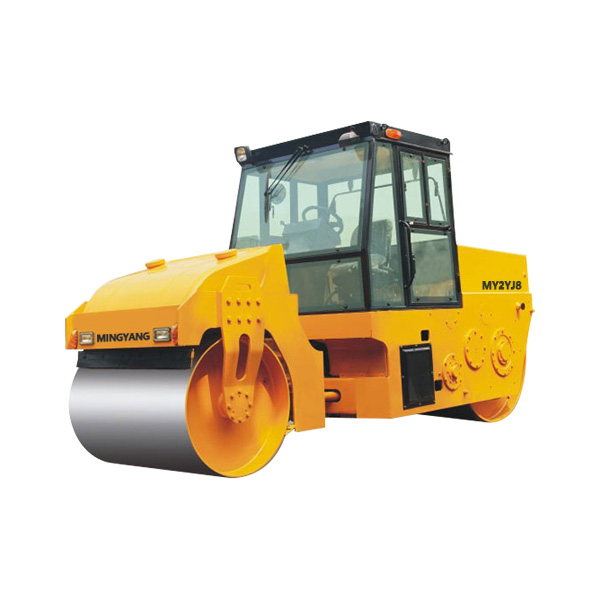

MY2YJ8 tandem roller is mostly suitable for flattening and compacting surfaces of the roads including hornblende, broken stone, asphalt and concrete ones. It can be also used for compacting bases of roads, articulated connection and flexible steering. It adopted the hydraulic braking, safe and dependable. The nose of the roller is narrow with an excellent turning sight.

Main Features

▲ Articulated connection, flexible steering and small turning radius. It adopted the hydraulic braking, safe and dependable. The nose of the roller is narrow with an excellent turning sight.


▲ A sprinkling set is equipped for evenly sprinkling water on the surfaces of both front and rear drums.

Main Technical Parameters


Model

Unit

MY2YJ8

Operating mass

kg

8000/10000

Front linear load

N/cm

242/303

Rear linear load

N/cm

343/429

1st gear


2.62

2nd gear


5.18

3rd gear


10.3

Grade ability

%

20

Turning speed

mm

5050/6450

Overall dimension

mm

4400X1770X2620

Wheelbase

mm

3220

Ground clearance

mm

240

Diesel power /model

kw

36.8/4D32T31/502

Water tank capacity

L

435
