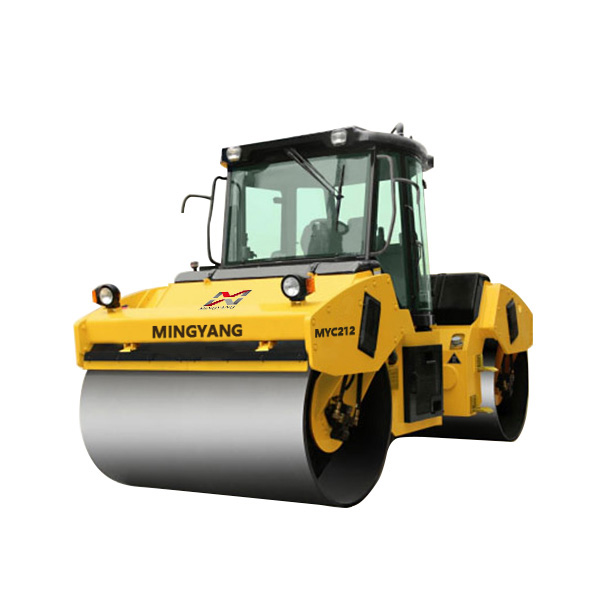

Hydraulic Double Drum Vibratory Roller

Availability:

Quantity:



Inquire Add to Basket

Model:
MYC208/MYC210/MYC212/MYC214
Brand:
MINGYANG

Product Description

Product Introduction

MYC208,MYC210,MYC212,MYC214 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is primarily used for the compaction of road asphalt concrete, sand g ravel mixtures and RCC material, being a universal compaction equipment for highway, municipal road, park area and industry ground etc..

Main Features

▲ Full hydraulic two wheel drive and Vibration.

▲ Double frequency double Vibration system.

▲ Hydrostatic center articulated steering, optional crab agency.

▲ Cabin with air conditioner, comfortable and spacious, the flexible steering seat facilicates the operation.

▲ The driver's cabin can be turned on one side as a whole, to facilitate maintenance.

▲ Fork-type frame, good hold-down property.

▲ Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER or German manufacturer REXROTH.

Main Technical Parameters

Model	Unit	MYC208	MYC210	MYC212	MYC214
Operating mass	kg	8000	10000	12000	14000
Front axle load	kg	4000	5000	6000	7000
Rear axle load	kg	4000	5000	6000	7000
Static linear load	N/cm	231	289	286	333
From of frame		Fork-type	Fork-type	Fork-type	Fork-type
Water tank capacity	L	2X450	2X450	2X600	2X600
Fuel tank capacity	L	134	134	174	174
Hydraulic tank capacity	L	75	75	65	75
High amplitude		0.67	0.67	0.8	0.8
Low amplitude		0.34	0.34	0.34	0.34
Vibration frequency	Hz
High amplitude		40	40	40	40
Low amplitude		46	46	46	46
Centrifugal force	kN
High amplitude		160x2	160x2	160x2	160x2
Low amplitude		90x2	90x2	90x2	90x2
Travel speed	km/h	0-10	0-10	0-12	0-12
Turning radius	mm	6000	6000	7000	7000
Grade ability	%	30	30	30	30
Steering angle	°	±30	±30	±30	±30
Drum diameter	mm	1150	1150	1350	1350
Drum width	mm	1730	1730	2100	2100
Transverse swing angle of the vibrating wheel	°	±8	±8	±8	±8
Type of water spraying		Pressure	Pressure	Pressure	Pressure
Ground Clearance	mm	258	258	324	324
Wheelbase	mm	3217	3217	3717	3717
Overall length		4558	4558	5060	5060
Overall width		1840	1840	2250	2250
Overall height		2674	2674	3000	3000
Diesel model		QSB3.9	QSB3.9	QSB3.9	QSB3.9
Diesel power	kw	74	74	94	94
Diesel speed	r/min	2400	2400	2300	2300
