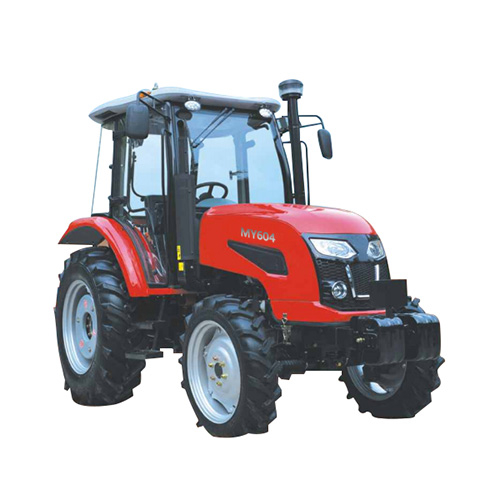

60-120HP Wheel Tractor

Availability:
Quantity:
  • MY604/MY704/MY804B/MY904B/MY1004/MY1204

  • MINGYANG

Product Description

The main tractor products are MINGYANG 60-210 series. According to the requirements of customers, we have developed a variety of configurations suitable for the market demand, such as widening the wheelbase, heightening the ground clearance, using swing drawbar and common drawbar at the same time.


The company follows the guiding principles of " Market oriented, Survive with products, Make customers satisfied". implements the quality brand strategy, cost price strategy and after-sales service strategy, and strives to make the leading products "MINGYANG" brand series large and medium-sized wheel tractors with good quality, perfect and attentive service and the best cost performance to meet the needs of customers by virtue of the integrated production system from roughcast to processing and assembly, strict and scientific quality management.


Technical Features:


Strong motive power

▲Adopt Xinchai diesel engine series, large reserves of torque, low fuel consumption and high economic efficiency.


▲Optional for Quanchai diesel engine series, adapt to the needs of different regions.


High reliability


▲Imported high strength powder metallurgic clutch plate, reliable transmission.


▲Independent oil circuit of hydraulic system, high cleanliness and low failure rate.


▲Reinforced chassis structure, stable and reliable performance. Efficient operation.


▲ Adopts 4x3x (1+1)  compound transmission,12F+12R gear, shuttle shift, side control, easy to operate.


▲ Vertical double oil cylinder high pressure lifter, large lifting force and good operation adaptability.


▲ Increase the volume of diesel tank to meet the requirements of long-term operation.


Comfortable operation


▲ Flat panel console, shuttle shift under the steering wheel, reasonable man-machine engineering.


▲ Full hydraulic steering system, flexible and comfortable operation.


▲ Optional for cab, comfortable driving space.


Technical Parameters:


Tractor Model

MY604

MY704

MY804B

MY904B

MY1004

MY1204

Drive Type

4x4

Overall Dimension LxWxH (mm)

3925x1728x2870

4070x1700x2870

4080x1750x2880

4130x1720x2820

Overall Dimension with optional driver's cab LxWxH (mm)

3925x1728x2650

4070x1700x2650

4080x1750x2650

4130x1720x2650

Wheelbase (mm)

2010

2030

2080

2020

Front wheel tread (mm)

1265

1285

1353

Rear wheel tread (mm)

1220-1520

1200-1500

1350

1352

Min. ground clearance (mm)

360

370

Min. operating weight (kg)

2565

2720

2900

2950

Min. operating weight with optional driver's cab (kg)

2665

2820

3000

3050

Gearbox gears number

12F+12R

Forward Speed (kw/h)

2.33-31.04

2.33-31.05

2.41-31.96

2.41-30.91

2.41-30.91

Reverse Speed(kw/h)

2.04-27.21

2.04-27.22

2.11-27.14

2.11-27.1

Engine Brand

XINCHAI

XINCHAI

QUANCHAI

XINCHAI

QUANCHAI

Engine Model

4D32ZT31/604

4D32ZT31/704

4C6-80U32

4K41ZT31/903

4C6-100C35

4C6-120C32

Engine Rated power (kw)

44.1

51.5

59

66.2

73.5

88.3

Engine Rated speed (r/min)

2400

2300

2400

Front tires spec.

8.3-24

9.5-24

Rear tires spec.

11-32

14.9-30

11-32

14.9-30

Max traction force (kN)

21.5

21.5

22.68

24.03

24.4

Max. lifting force (kN)

10.3

12.7

14.5

16.5

17.6

21.2

PTO Power (kw)

37.4

43.8

50.1

56.27

62.5

75

PTO Type

Rear-mounted, Semi- independent type

Rear-mounted, Independent type

PTO Speed (r/min)

540/720 or 540/1000

PTO Shaft size

φ38mmx8 splines or 6 splines

Steering type

Full hydraulic front wheels steering

Control type of  ploughing depth

Height control & Flotation control

Front/Rear Iron ballast as option (kg)

112/200

Fuel tank capacity (L)

60

60+25
