Strong motive power:
▲ Equipped with Dongfanghong Electronic Unit Pump or high-pressure common rail engine, large reserves of torque, low fuel consumption and high economic efficiency.
▲ Optional for Multi state variable frequency switch, different working conditions correspond to different power, meeting the requirements of fuel saving and efficiency increasing.
High reliability:
▲ Imported high strength powder metallurgic clutch plate, reliable transmission.
▲ The combined Instrument can display fault information in Chinese characters, which is convenient for users to monitor the vehicle status at any time.
▲ Equipped with KA prefilter and Donaldson air filter, it has good filtering effect and convenient maintenance.
▲ Independent oil circuit of hydraulic system, high cleanliness and low failure rate.
▲ Stable front drive axle, large transmission torque.
Efficient operation:
▲ Adopts 4 ×(2+1) ×2 compound transmission, 16F + 8R gear, Reasonable speed matching, easy to operate.
▲ Equipped with 200L large capacity diesel tank, long continuous operation time and high efficiency.
▲ Double oil cylinder high pressure lifter, large lifting force and good operation adaptability.
▲ Full hydraulic steering system, flexible and comfortable operation.

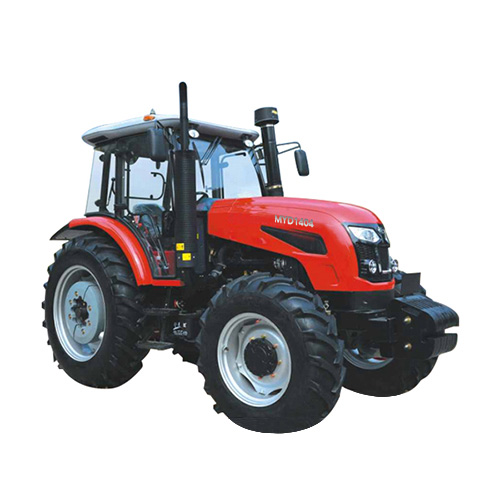

Tractor Model | MYD1404 | MYD1604 | MY1404B | MY1604B | MY1804B |
Drive type | 4x4 |
Overall dimension with driver's cab LxWxH (mm) | 4525x2046x3030 |
| 4740x2170x2990 |
Wheelbase (mm) | 2232 |
| 2490 |
Front wheel tread (mm) | 1592 |
| 1760 |
Rear wheel tread (mm) | 1616 |
| 1620 |
Min. ground clearance(mm) | 385 |
| 475 |
Min. operating weight with driver’s cab(kg) | 4400 | 5050
| 4910
|
Gearbox gears number | 16F+8R |
Forward speed (kw/h) | 0.44-33.34 | 0.47-35.45 |
Reverse speed(kw/h) | 0.59-10.31 | 0.63-10.97 |
Engine brand | YTO |
Engine model | LR4M3LR22 /1030 | LR4M3LR22 /1177 | LR6M3ZU22 /1030E | LR6M3LR22 /1177 | LR6M3LR22 /1324 |
Engine rated power (kw) | 103 | 117.7 | 103 | 117.7 | 132.4 |
Engine rated speed (r/min) | 2200 |
Front tires spec. | 12.4-24 | 13.6-24 | 14.9-26 |
Rear tires spec. | 16.9-34 | 16.9-34 | 16.9-38 |
Max traction force (kN) | 36.6 | 42.4 | 42.2 |
Max. lifting force (kN) | 24.7 | 28.4 | 24.8 | 28.3 | 31.8 |
PTO power (kw) | 87.6 | 101 | 87.6 | 100 | 112.5 |
PTO type | Rear-mounted, Independent type |
PTO speed (r/min) | 760/850 or 540/1000 |
PTO shaft Size | φ38mmx8 splines or 6 splines |
Steering type | Full hydraulic front wheels steering |
Control type of ploughing depth | Height control & Flotation control |
Front/Rear iron ballast as option (kg) | 400/320 |
Fuel tank capacity (L) | 145 | 200 |
