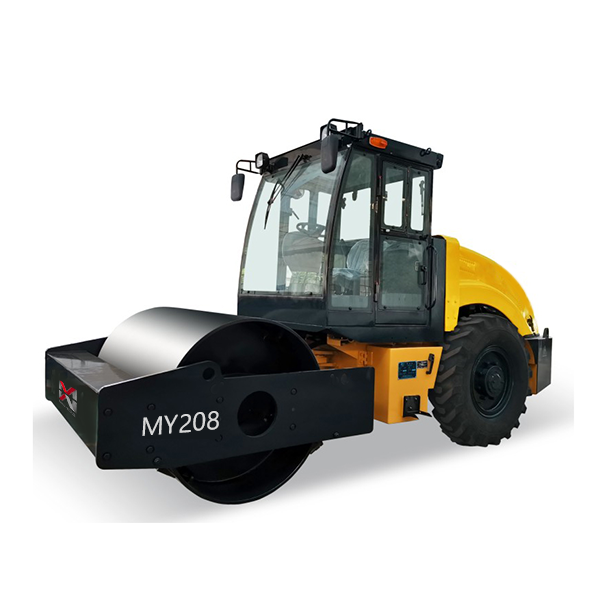

Mechanical Drive Single Drum Vibratory Roller

Availability:
Quantity:
  • MY208

  • MINGYANG

Product Description

Product Introduction

MY208 is suitable for the compaction of various non-viscous materials such as soil, gravel, gravel, gravel mixture, rock filling and various stable soil, and can be widely used in grade highways, railways, municipal works, airports, ports, docks, dikes and various industrial construction sites.

Product Feature

▲ Front wheel hydraulic vibration, hydraulic steering, rear wheel mechanical drive, with forward and backward each four gear without clutch power shift gearbox, light operation, strong climbing ability, fast transfer speed.


Special vibration wheel technology, high vibration force, high compaction degree, high working efficiency.


Strengthen the special rear axle, the brake system uses gas push oil power clamp disc brake, the braking effect is good, safe and reliable.


Articulated frame, light steering, small turning radius, flexible mobility.


The rear hood large Angle flip freely, engine gearbox inverted, humanized layout, easy maintenance.


Unique appearance and shape, the whole machine has a compact structure, low center of gravity, smooth driving, and good front and rear vision.


Adopt secondary vibration reduction, install adjustable elastic suspension vibration reduction seat, driving comfortable.

Main Performance Parameters

Model

Unit

MY208

Operating mass

kg

8000

Static linear load

N/cm

235

Vibration amplitude

mm

0.4

Vibration frequency

Hz

53

Centrifugal force

kN

82

Travel speed

km/h

2.2/5.1/8.2/12.8

Grade ability

%

35

Turning radius

mm

6000

Overall dimensions

mm

5050×1880×2690

Vibration round width

mm

1700

Wheelbase

mm

2750

Ground clearance

mm

320

Diesel model


CF4C90G-Z

Rated power

kw

66.3

Rated speed

r/min

2400

Fuel tank volume

L

190

Hydraulic oil tank volume

L

86
