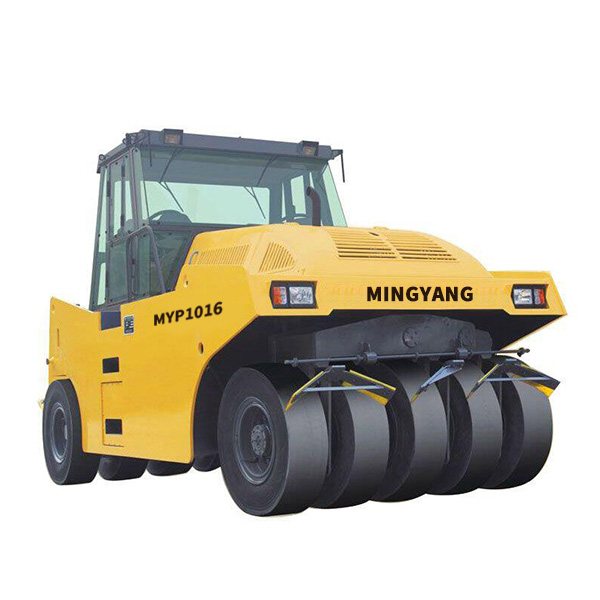

Hydraulic Pneumatic Tyre Roller

Availability:

Quantity:



Inquire Add to Basket

Model:
MYP2030H/MYP1016/MYP2030H/MYP1016H
Brand:
MINGYANG

Product Description

Product Introduction

Pneumatic tire roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC) in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.

Main Features

▲ Three forward speed and two backward changes, reinforced plastic spraying box and multi-layer water filter ensure the stability of the system.

▲With step-less speed changes, which is easy and reliable to operate.

Main Technical Parameters

Model	Unit	MYP2030H	MYP1016	MYP2030H	MYP1016H
Operating mass (Unballast/Ballast)	kg	20000/30000	10000/16000	20000/30000	10000/16000
Max. travel speed	km/h	13.3	14.7	20.75	14
Tire quantity (front+ rear)		5+6	4+5	5+6	4+5
Min. turning radium	mm	8000	7500	8000	7500
The presses the width	mm	2790	2280	2790	2280
Grade ability	%	25	25	25	25
Compaction width	mm	2790	2790	2280
Overall dimension	mm	4950×2850×3200	4780×2280×3200	4950×2850×3200	4780×2280×3200
Wheelbase	mm	3800	3700	3800	3700
Diesel model		QSB5.9	QSB3.9	QSB5.9	QSB3.9
Diesel power	kw	125	74	125	75
