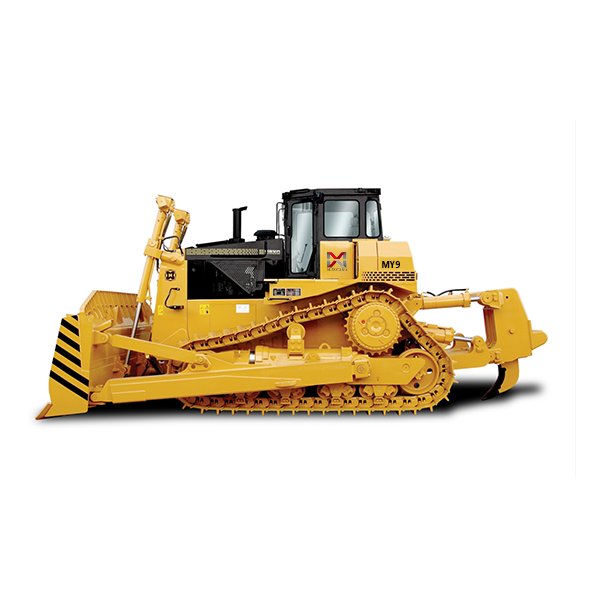

430HP Elevated Sprocket Series Bulldozer

Share to:

430HP Elevated Sprocket Series Bulldozer

Availability:

Quantity:



Inquire Add to Basket

Model:
MYSD9
Brand:
MINGYANG

Product Description

Product Features:

▲ 430HP bulldozer: semi-rigid elasticity suspending, hydraulic-mechanical transmission, elevated sprocket track type, wholly hydraulic operation, pilot hydraulic controlling blade operation, modular designing components easily for maintaining, portable laborsaving nicety man-machine designing controlling system, electric monitoring, ROPS cabin, many optional equipments, broadly used in transport, desert, oil field, power station, mine, swamp etc. large-scale soil stone construction.

▲ You can select original American Cummins engine, emission standard meet with Tier3 with lower fuel consumption and stronger power output.

Specifications:

Model	Unit	MYSD9(430HP)
Dozer		Tilt
Operation weight (including ripper)	kg	44580(48880)
Ground pressure	kpa	102(112)
Track gauge	mm	2250
Min.ground clearance	mm	517
Gradient		30°/25°
Dozing capacity	m³	13.5
Blade width	mm	4314
Max.digging depth	mm	614
Overall dimensions (including ripper)	mm	6592×4314×3970 (8478×4314×3970)
Max.digging depth of ripper	mm	Single shank ripper 1117
Max.lifting height of ripper	mm	Single shank ripper 863
Engine type		Cummins KTA19-C525/ Original US Cummins QSX15
Rated revolution	rpm	1800
Rated power	kw	346
Torque storage coefficient		18%
Undercarriage system		The track is triangle shape.The sprocket is elevated
Number of track rollers (each side)		8
Number of carrier rollers (each side)		1
Pitch	mm	240
Width of shoe	mm	610
Gear
Forward	km/h	1st：0-3.9 2nd：0-6.9 3rd：0-12.2
Backward	km/h	1st：0-4.8 2nd：0-8.5 3rd：0-15.1
Torque converter		Torque conver is power separating hydraulic-mechanic type.
Transmission		Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch		The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch		The braking clutch is pressed by spring,separated hydraulic, meshed type.
Final drive		The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
