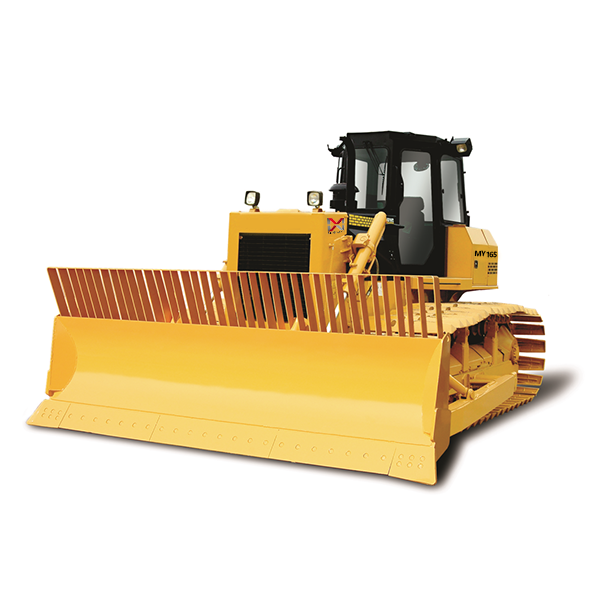

165HP Hydraulic Bulldozer

Dozer

Tilt

U-blade

Tilt

Operation weight（kg）

17550

18050

19000

Ground pressure（kpa）

66.9

67.4

31

Track gauge（mm）

1880

1880

2300

Min.ground clearance（mm）

353

353

375

Gradient

30°/25°

30°/25°

30°/25°

Dozing capacity（m³）

4.6

5.2

4.8

Blade width（mm）

3442

3467

4210

Max.digging depth（mm）

420

420

400

Overall dimensions（mm）

5447×3442×3160

6864×3467×3160

5530×4210×3190

Engine Type

Weichai WD10G178E25

Rated revolution（rpm）

1850

Rated power（kw）

131

Max.torque（N.m/rpm）

830/1000-1200

Rated fuel consumption（g/kw.h）

≤215

Undercarriage system

Number of track rollers（each side）

6

7

Number of carrier rollers（each side）

2

Pitch（mm）

203

Width of shoe（mm）

500

1000

Gear

1st：3.32

2nd：6.26

3rd：11.40

1st：3.59

2nd：6.76

3rd：12.37

Backward（km/h）

1st：4.00

2nd：7.57

3rd：13.87

1st：4.33

2nd：8.90

3rd：14.96

Torque converter

3-element 1-stage 1-phase

Transmission

Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.

Steering clutch

Multiple-disc oil power metallurgy disc compressed by spring hydraulic operated.

Braking clutch

Brake is oil two direction floating band brake operated by mechanical foot pedal.

Final drive

The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.
