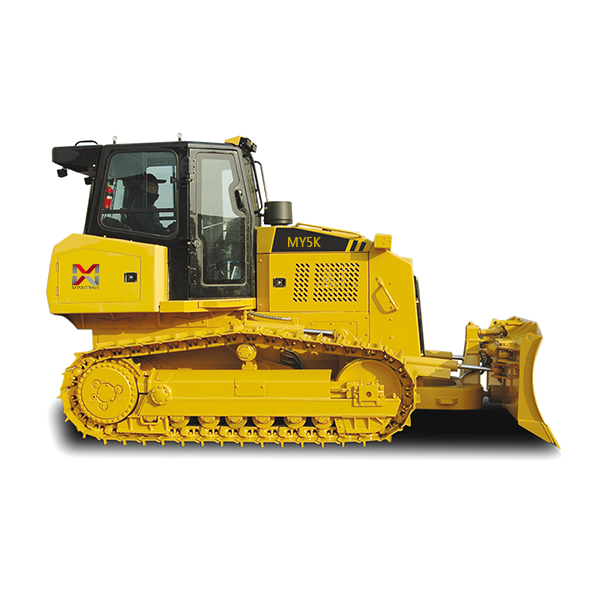

130HP Series Bulldozer

Availability:
Quantity:
  • MYSD5K

  • MINGYANG

Product Description

Product Features:

▲Click here to edit your content. 130HP is the track-type hydrostatic bulldozer with semi-rigid suspended, electronic controlled tier III engine, dual-circuits electronic controlled hydrostatic driving system, electric controlled heart closed load sensing implement hydraulic system, Power-Angle-Tilting blade, automatic controlled independent cooling system.


▲ This model is equipped with electronic controlled engine of full power matching mode, with stepless speed change and pivot steering function, modular design and easy to repair and maintenance; the electronic proportional controlled walking system and work device make the operating precise and comfortable; Human-computer interaction instrument display, intelligent service system, fully sealed air conditioning cab.


▲ It can be equipped with three shanks ripper. It is an ideal machine used in exquisite or heavy load working such as harbour construction, communication construction, stadium, electric power project, city and town earth moving, backfill, modelling.

Technical Specifications:

Model

Unit

MYSD5K130HP

Dozer


Power-Angle-Tilting blade

Operation weight

kg

13100

Ground pressure

kpa

45

Track gauge

mm

1790

Min. ground clearance

mm

315

Gradient


30°/25°

Dozing capacity


3.1

Blade width

mm

3060

Max. digging depth

mm

460

Overall dimensions

mm

4922×3060×2999

Engine type


WEICHAI WP6G125E332

Rated revolution

rpm

2200

Rated power

kw

97

Max. torque

N.m/rpm

570/1450

Rated fuel consumption

g/kw.h

190

Undercarriage system


track-type hydrostatic bulldozer with semi-rigid suspended

Number of track rollerseach side


7

Number of carrier rollerseach side


2

Pitch

mm

190

Width of shoe

mm

510

Gear



Forward

km/h

0-10.5

Backward

km/h

0-10.5
