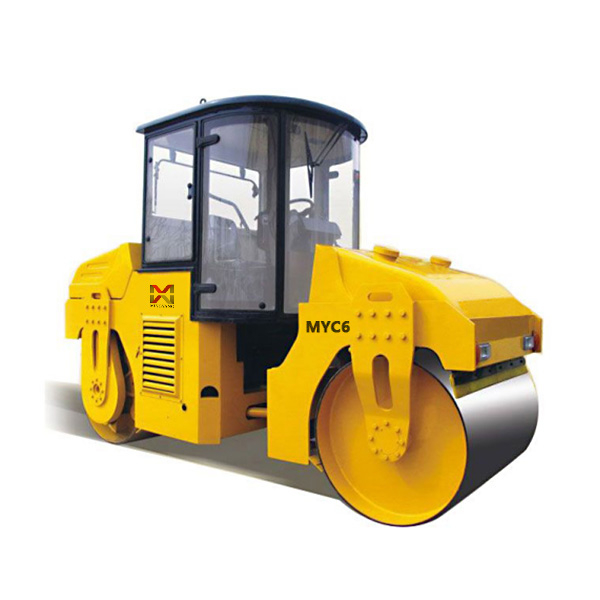

Mechanical Drive Double Drum Vibratory Road Roller

Share to:

Mechanical Drive Double Drum Vibratory Road Roller

Availability:

Quantity:



Inquire Add to Basket

Model:
MYC6/MYC6D
Brand:
MINGYANG

Product Description

Product Introduction

MYC6,MYC6D Double Drum Vibratory Roller is applicable for maintenance of municipal roads and highways, as well as the compaction of the narrow road surfaces such as groove foundation with width above 1.5m, building construction, pipeline backfill and stadium.

Main Features

◆Hydraulic vibration and oscillation, great centrifugal force and high compactness.

◆This roller has articulated frame, hydraulic steering, small turning radius and flexible drive.

◆Anticorrosive spray water system and fool capacity water tank and electric pressurized sprinkler.

◆Shock-proof sock absorber for long life and operate comfortable.

◆Close performance is extremely fine and work close up to building.

◆Secure hydraulic brake.

Main Technical Parameters

Model	Unit	MYC6	MYC6D
Static linear load	N/cm	232.4	232.4
Centrifugal force	kN	55
Centrifugal movement	kN.m		20.6
Oscillatoin frequency	Hz	46	43
Oriental vibration amplitude	mm	0.62
Oscillation amplitude			0.6
Travel speed 1st gear 2nd gear	km/h	2.5/7.5	2.5/7.5
Grade ability	%	>20	>20
Drum diameter	mm	950	950
Rolling width	mm	1320	1320
Overall dimension (L×W×H)	mm	3690×1600×2700	3690×1600×2700
Diesel model		4D32T31/502	4D32T31/502
Diesel power	kw	36.8	36.8
Diesel speed	r/min	2200	2200
Water tank capacity	L	435	435

Hydraulic Handheld Vibratory Roller

130HP Series Bulldozer

165HP Hydraulic Bulldozer

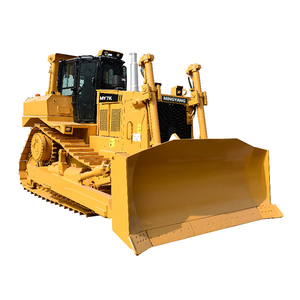

240HP Elevated Sprocket Series Bulldozer
