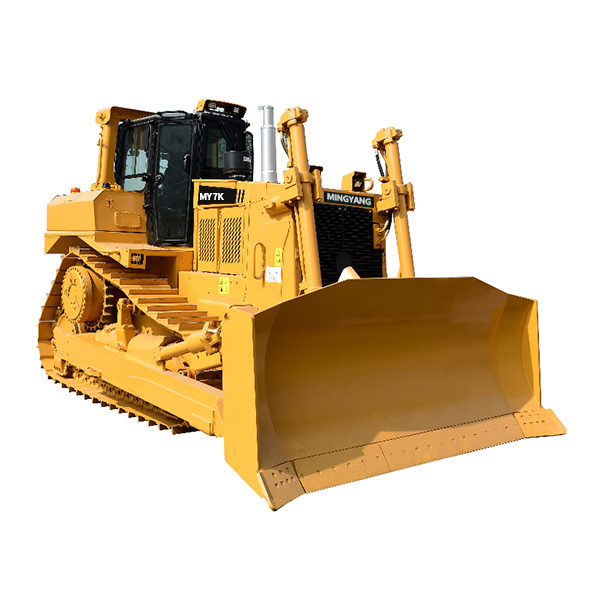

240HP Elevated Sprocket Series Bulldozer

Availability:
Quantity:
  • MYSD7K

  • MINGYANG

Product Description

Product Features:


240HP bulldozer is semi-rigid suspended, elevated sprocket, the tier III electronic control engine, hydrostatic transmission infinitely variable speed, full power matching, automatic control independent cooling system. Electronically controlled engine with full power matching pattern, low pollution and energy saving;


▲ The 240HP bulldozer is integrated with modular design, easy to repair and maintenance. Electric proportion control transmission system and implement pilot hydraulic control, operation accurately and comfortable;


▲ Human-computer interaction instrument display, fully sealed air conditioning cab. It can be equipped with angle blade, U-shaped blade, single shank ripper, three shanks ripper and variety of working device. It is an ideal machine used in transportation construction, desert, oil field, electric power project, mining and other large earth moving projects.


Specifications:

Model

Unit

MYSD7K(240HP)

Dozer


Tilt

Operation weight

kg

25500

Ground pressure

kpa

77.9

Track gauge

mm

1980

Min.ground clearance

mm

394

Gradient


30°/25°

Dozing capacity

8.1

Blade width

mm

35520

Max.digging depth

mm

498

Overall dimensions

mm

5876×3550×3402

Engine type


Weichai.WP12G250E302

Rated revolution

rpm

2100

Rated power

kw

185

Max.torque

N.m/rpm

1200/750-1400

Rated fuel consumption

g/kw.h

182-202

Undercarriage system


The track is triangle shape.The sprocket is elevated.

Number of track rollers(each side)


7

Number of carrier rollers(each side)


1

Pitch

mm

216

Width of shoe

mm

560

Gear



Forward

km/h

0-10.5

Backward

km/h

0-10.5

Driving system


Variable pump+variable motor hydraulic system(Close circuit variable hydro static system)

Wet multi-disc brake

Three-stage planetary reduction gear mechanism

Electric joystick
