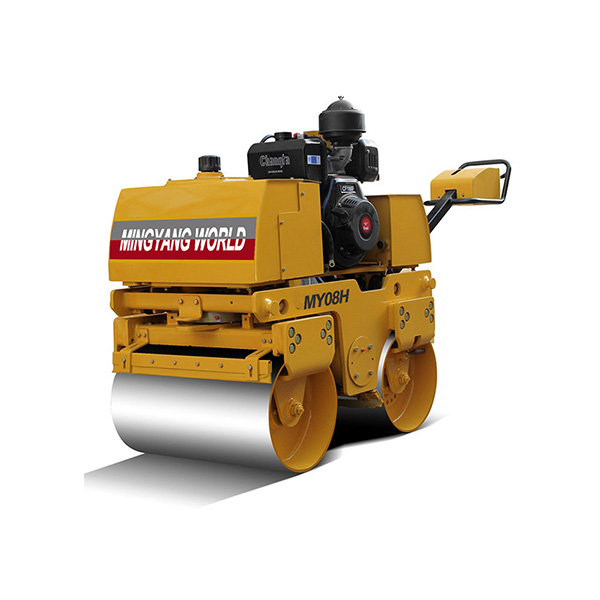

Hydraulic Handheld Vibratory Roller

Availability:
Quantity:
  • MY08H

  • MINGYANG

Product Introduction

Product Introduction



Hydraulic drive walk-behind vibratory roller is applied to mending and maintaining various roads, expressway shoulder, side walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench ect.


Product Description


▲Hydraulic double drums travel drive, mechanical vibration drive and hydraulic steering with excellent performance, advanced technical.


▲Handing operating lever can control forward & backward travel, infinitely variable speed gearshift and travel brake. Electronic button integrated on the operating lever controls steering and stopping of vibration for ease and comfort operation.


▲Front and rear drums are articulated with the four-point bearing, hydraulic steering operated with electronic button for flexibility and forceless.


▲Hydraulic travel brake and mechanical lock parking brake device protect operator safety.


▲Whole streamline shape appearance design for beautiful shape and compact structure.


Technical Specification

Model

          Unit

MY08H

Operating mass

kg

770

Static linear load

N/cm

62/62

Vibration amplitude

mm

0.25

Vibration frequency

Hz

48

Centrifugal force

kN

12

Travel speed

km/h

0-4

Grade ability

%

40

Turning speed

mm

2700

Turning angle

°

±30

Overall dimension

mm

2400*880*1100

Vibration drum diameter

mm

400

Drum width

mm

600

Wheelbase

mm

470

Diesel power/model

kw

5.68/CF186F

Water tank capacity

L

32
