MYT6000
MINGYANG

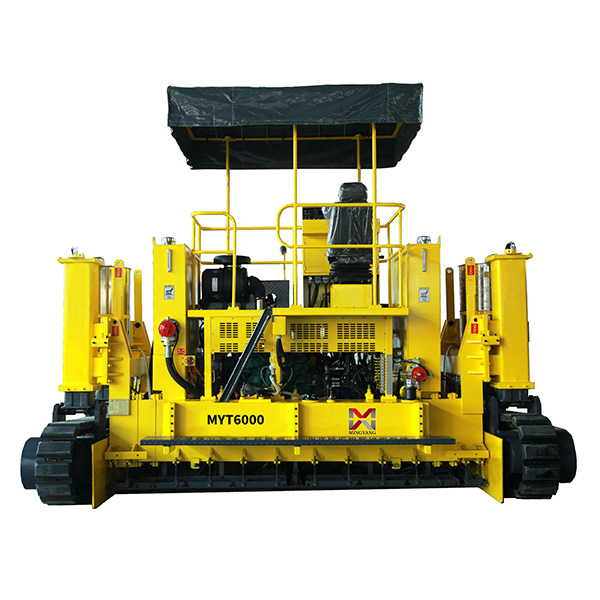

    ▲ MYT6000 Slipform concrete paver are designed with full hydraulic drive, centralized computer control with real-time monitoring and self-diagnostic capabilities, and auto levelling and tracing systems.
▲ This innovative, advanced and practical machine of high standard is a key specialty equipment for the construction of high-speed railway and concrete road .
▲MYT6000 are suitable for the construction of China's high-speed railway hydraulic support layer and concrete road, and operable for the construction of hydraulic-activity supporting course and concrete road.
▲ Simultaneous operations of hydraulic-activity supporting course, scraping, vibrating, tamping and extruding at the same time.
▲ Full hydraulic independent drive, micro-computer with display and self-diagnostic capability.
▲ Auto levelling and tracing systems to ensure paving flatness, straightness and smoothness at road bends.
▲ Ergonomically designed with smart controls for operational comfort and ease.
▲ Imported key components to ensure machine reliability and prolong service life of the paver.

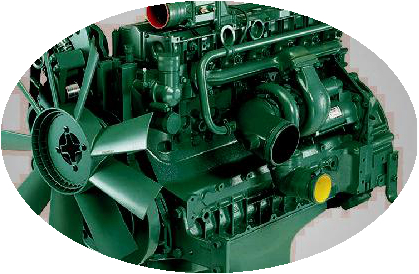

  1.Engine
 1.Engine Volvo TAD552VE/851VE water-cooled engine, powerful,
 high-torque reservation low fuel consumption, emission in
high-torque reservation low fuel consumption, emission in
conformity with Europe environment.

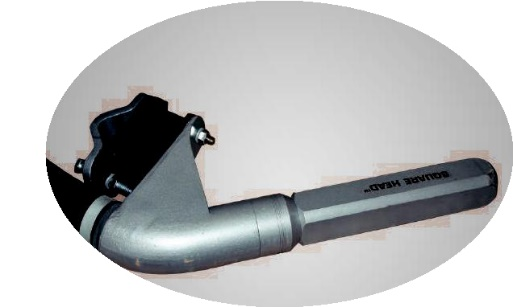

 2. Vibration Device
 2. Vibration Device Super-high frequency, strong vibration, high density of
 top-side paving.
top-side paving.

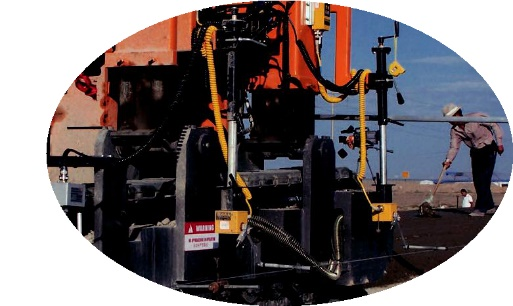

 3. Auto Levelling System
 3. Auto Levelling System Auto levelling and tracing systems ensures paving surface
flatness and road straightness.
 4. Scraping Plate
 4. Scraping Plate Controlled through two hydraulic cylinders to control concrete
quantity incoming to shaping-template, which could go up & down wholly or up & down independently at either LH or RH.

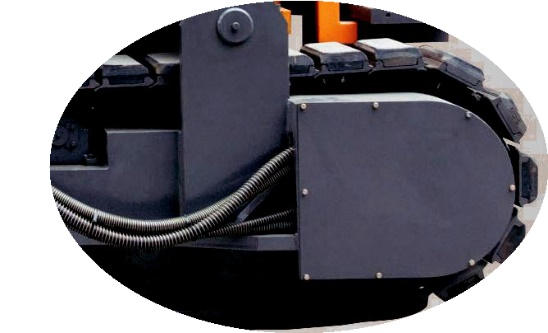

5. Travelling System
Two hydraulic-drive crawlers and microcomputer control ensure pre-set constant speed, correct straight-line running and smooth steering at bends.

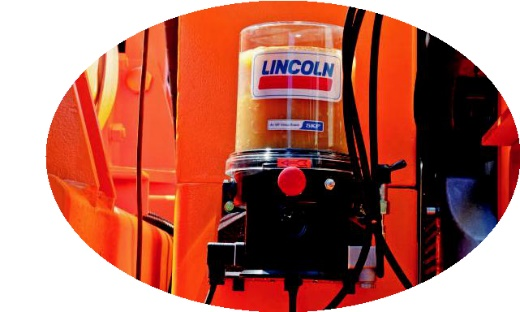

6. Centralized Lubrication
 Centralized lubrication can auto. Charge lubrication grease to high-temperature and motive components, lengthen wear-out period effectively, greatly improve reliability of tamper and feeding.
Centralized lubrication can auto. Charge lubrication grease to high-temperature and motive components, lengthen wear-out period effectively, greatly improve reliability of tamper and feeding.

| Description | Unit | MYT6000 |
| Paving width | mm | 3400-6000 |
| Max. paving thickness | mm | 0-350 |
| Paving speed | m/min | 0-10 |
| Engine model | TAD552VE | |
| Engine power | kw/pm | 160/2200 |
| Vibration bar | High frequency & hydraulic drive | |
| Drive mode | hydraulic drive | |

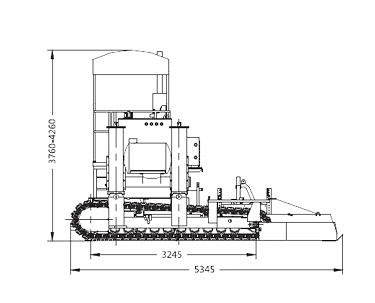

| Overall size | mm | 4000×7300×2800 |
| Machine weight | kg | 22000 |
