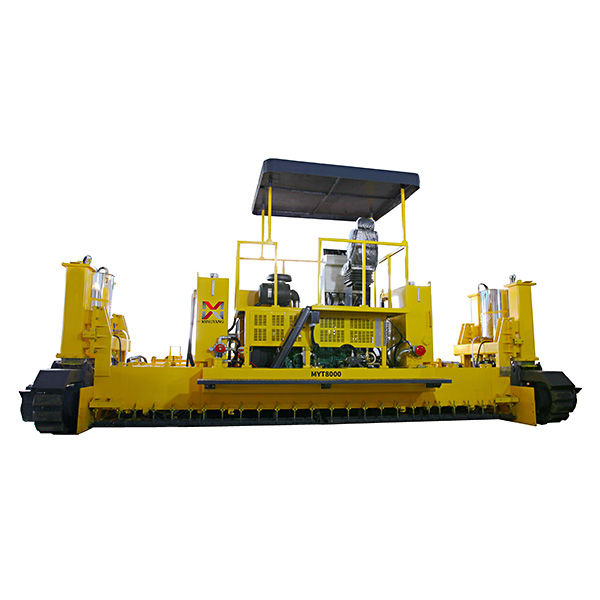

MYT8000 Slipform Concrete Paver

Availability:
Quantity:
  • MYT8000

  • MINGYANG

Product Description

     ▲ MYT8000 Slipform Concrete Paver are designed with full hydraulic drive, centralized computer control with real-time monitoring and self-diagnostic capabilities, and auto levelling and tracing systems.


     ▲ This innovative, advanced and practical machine of high standard is a key specialty equipment for the construction of high-speed railway and concrete road.


Performance Characteristics:

▲ MYT8000 are suitable for the construction of China's high-speed railway hydraulic support layer and concrete road, and operable for the construction of hydraulic-activity supporting course and concrete road.


▲ Simultaneous operations of hydraulic-activity supporting course, scraping, vibrating, tamping and extruding at the same time.


▲ Full hydraulic independent drive, micro-computer with display and self-diagnostic capability.


▲ Auto levelling and tracing systems to ensure paving flatness, straightness and smoothness at road bends.


▲ Ergonomically designed with smart controls for operational comfort and ease.


▲ Imported key components to ensure machine reliability and prolong service life of the paver.

1
2


Product Features:
3

1.Engine

Volvo TAD552VE/851VE water-cooled engine, powerful,

high-torque reservation low fuel consumption, emission in

conformity with Europe environment.

4 2. Vibration Device

Super-high frequency, strong vibration, high density of

top-side paving.


5 3. Auto Levelling System

Auto levelling and tracing systems ensures paving surface

flatness and road straightness.



6 4. Scraping Plate

Controlled through two hydraulic cylinders to control concrete

quantity incoming to shaping-template, which could go up & down wholly or up & down independently at either LH or RH.


5. Travelling System

Two hydraulic-drive crawlers and microcomputer control Ensure pre-set constant speed, correct straight-line running and smooth steering at bends.


6. Centralized Lubrication

Centralized lubrication can auto. Charge lubrication grease to high-temperature and motive components, lengthen wear-out period effectively, greatly improve reliability of tamper and feeding.

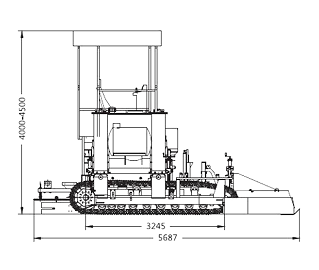

7

Specification:

Description

Unit

MYT8000

Paving width

mm

4250-8000

Max. paving thickness

mm

0-350

Paving speed

m/min

0-10

Engine model


TAD851VE

Engine power

kw/pm

185/2200

vibration bar


High frequency & hydraulic drive

Drive mode


hydraulic drive

Overall size

mm

4000×9300×2800

Machine weight

kg

25000
