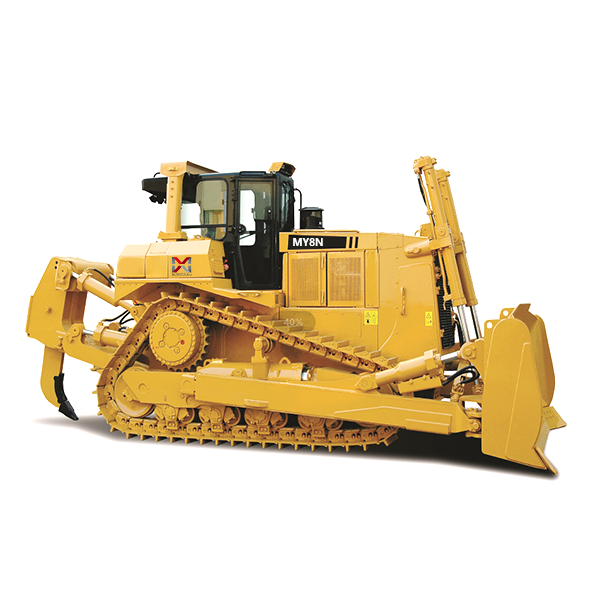

320HP Elevated Sprocket Series Bulldozer

Share to:

320HP Elevated Sprocket Series Bulldozer

Availability:

Quantity:



Inquire Add to Basket

Model:
MYSD8N
Brand:
MINGYANG

Product Description

Product Features:

▲ 320HP bulldozer is track-type dozer with elevated sprocket, hydraulic direct drive, semi-rigid suspended and hydraulic controls. Equipped with power separating hydraulic-mechanic type torque converter, planetary, power shift and one lever control transmission.

▲ 320HP bulldozer equipped with pilot hydraulic control system; Its new structure of modular assembling and disassembling with handy, accurate operating system, electric monitoring, 320HP bulldozer can be equipped with many optional equipment and attachment, it can be used in road building, hydro-electric construction, land clearance, port and mine development and other construction field.

Specifications:

Model	Unit	MYSD8N（320HP）
Dozer		Tilt
Operation weight (including ripper)	kg	37300
Ground pressure	kpa	94
Track gauge	mm	2083
Min.ground clearance	mm	556
Gradient		30°/25°
Dozing capacity	m³	11.24
Blade width	mm	3940
Max.digging depth	mm	582
Overall dimensions (including ripper)	mm	7930×3940×3549
Max.digging depth of ripper	mm	Single shank ripper 1135 Three shanks ripper 965
Max.lifting height of ripper	mm	Single shank ripper 635 Three shanks ripper 780
Engine type		Cummins NTA855-C360S10
Rated revolution	rpm	2100
Rated power	kw	257
Torque storage coefficient		≥20%
Undercarriage system		The track is triangle shape. The sprocket is elevated.
Number of track rollers (each side)		8
Number of carrier rollers (each side)		1
Pitch	mm	216
Width of shoe	mm	560
Gear
Forward	km/h	1st：0-3.5 2nd：0-6.2 3rd：0-10.8
Backward	km/h	1st：0-4.7 2nd：0-8.1 3rd：0-13.9
Torque converter		Torque conver is power separating hydraulic-mechanic type.
Transmission		Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch		The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch		The braking clutch is pressed by spring,separated hydraulic, meshed type.
Final drive		The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
