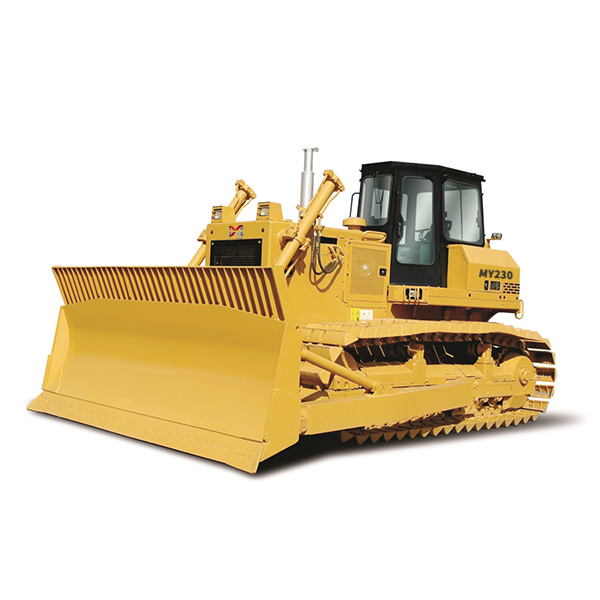

230HP Hydraulic Bulldozer

Availability:
Quantity:
  • MY230-3/MYS230-3

  • MINGYANG

Product Description

Product Features:

230HP bulldozer is semi-rigid suspended, total hydraulic controlled and hydrodynamic driving bulldozer, equipped with new model Cummins engine, three-element torque converter, single lever operation planetary gear transmission. Integrality injection molding plastics instrument panel, fully sealed shock absorption hexahedron cabin, the comfortable control system designed according to human and machine engineering; Undercarriage system with split-type tightening spring case structure makes the assembly and maintenance easy and convenient .


▲ The whole machine is with the advantage of powerful, high efficiency, excellent performance, and economical efficiency etc.. Optional equipments include U-blade, angle blade, waste handling blade, single and three shanks ripper, ROPS, centralization lubrication, and track automatically tightening system. It is the best choice for desert, oil fields, mines, electricity and sanitation construction projects.

Specifications:

Model

Unit

MY230-3(230HP)

MYS230-3(230HP)

Dozer


Tilt

Tilt

Operation weight

kg

24840

26710

Ground pressure

kpa

76

42

Track gauge

mm

2000

2250

Min.ground clearance

mm

405

510

Gradient


30°/25°

30°/25°

Dozing capacity

7.8

8.4

Blade width

mm

3666

4310

Max.digging depth

mm

540

500

Overall dimensions

mm

5733×3666×3380

6060×4310×3425

Engine type


Cummins.NT855-C280S10

Rated revolution

rpm

2000

Rated power

kw

179

Max.torque

N.m/rpm

1050/1400

Rated fuel consumption

g/kw.h

217

Undercarriage system



Number of track rollers(each side)


7

8

Number of carrier rollers(each side)


2

Pitch

mm

216

Width of shoe

mm

560

910

Gear




Forward

km/h

1st:0-3.8

2nd:0-6.8

3rd:0-11.8

1st:0-3.8

2nd:0-6.8

3rd:0-11.8

Backward

km/h

1st:0-4.9

2nd:0-8.5

3rd:0-14.3

1st:0-4.9

2nd:0-8.5

3rd:0-14.3
