MYSD7N/MY7NLGP
MINGYANG

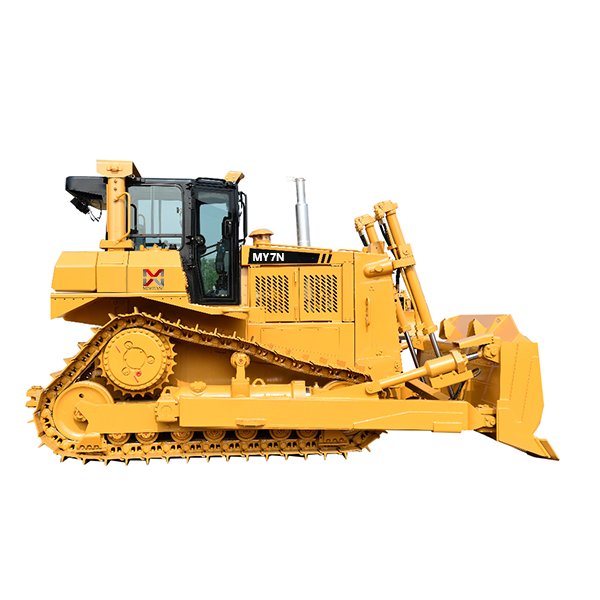

▲ 230HP bulldozer is track-type bulldozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls. It is with modular design, easy to repair & maintenance. Pilot hydraulic control with high working efficiency. According to the man-machine engineering design, the control system is smart and accurate. It is equipped with multi-function display and ROPS cabin.
▲ It can be equipped with U-blade, single shank ripper, three shanks ripper etc.. It is an ideal machine used in communication construction, oil field, power, mining etc. large earth moving projects.
Model | Unit | MYSD7N(230HP) | MY7NLGP(230HP) |
Dozer | Tilt | Tilt | |
Operation weight | kg | 24800 | 26800 |
Ground pressure | kpa | 74.1 | 46.2 |
Track gauge | mm | 1980 | 2235 |
Min.ground clearance | mm | 404 | 484 |
Gradient | 30°/25° | 30°/25° | |
Dozing capacity | m³ | 8.1 | 5.8 |
Blade width | mm | 3552 | 4382 |
Overall dimensions | mm | 5677×3552×3402 | 5473×4382×3482 |
Engine type | Cummins.NT855-C280S10 Weichai.WD12G250E302 | ||
Rated revolution | rpm | 2100 | |
Rated power | kw | 185 | |
Max. torque | N.m/rpm | 1200/1300-1400 | |
Rated fuel consumption | g/kw.h | ≤235 | |
Undercarriage system | The track is triangle shape.The sprocket is elevated. | ||
Number of track rollers (each side) | 7 | 7 | |
Number of carrier rollers (each side) | 1 | ||
Pitch | mm | 216 | |
Width of shoe | mm | 560 | 910 |
Gear | |||
Forward | km/h | 1st:0-3.9 2nd:0-6.5 3rd:0-10.9 | 1st:0-3.9 2nd:0-6.5 3rd:0-10.9 |
Backward | km/h | 1st:0-4.8 2nd:0-8.2 3rd:0-13.2 | 1st:0-4.8 2nd:0-8.2 3rd:0-13.2 |
Torque converter | Torque conver is power separating hydraulic-mechanic type. | ||
Transmission | Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. | ||
Steering clutch | The steering clutch is hydraulic pressed, usually separated clutch. | ||
Braking clutch | The braking clutch is pressed by spring,separated hydraulic, meshed type. | ||
Final drive | The final drive is two-stage planetary reduction gear mechanism, splash lubrication. | ||
