Performance Characteristics:
▲ Advanced design & optimized configuration, operable for paving graded roads' base and surface.
▲ Full hydraulic drive with uniform speed controlled by microcomputer, digital display, diagnosis and trouble-shooting function.
▲ Amount of materials fed to both sides are controlled by ultrasonic sensors to achieve optimum proportion and uniform distribution, minimizing segregation.
▲ High-accuracy auto. Leveling sensors ensure mat's surface flatness.
▲ Powerful double tampers with screed vibration can achieve high pavement quality for both the base and surface courses.
▲ Imported centralized lubrication system, automatically charging lubricating grease to all high temperature bearings, improving machine reliability.
▲ Key components such as hydraulic elements, speed reducers and wear resistant steel plates are imported from world class manufacturers to ensure product quality as well as increase the service life of the paver.
▲ Paver wireless remote control operating system (optional).

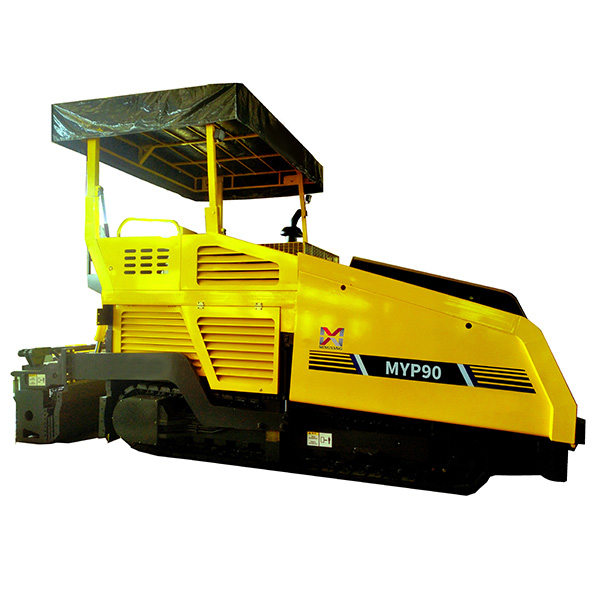

Description | Unit | MYP90 |
Paving width | mm | 3000-9000 |
Max. paving thickness | mm | 320 |
Theoretical productivity | t/h | 700 |
Paving speed | m/min | 0-16 |
Running speed | km/h | 0-2.39 |
Drive system |
| Full hydraulic |
Machine weight | t | 21-27 |
Engine model & power |
| SC9DK190.1G3, SHANGCHAI 140kw |
Track shoe width | mm | 320 |
Hopper capacity | t | 16 |
Auto. leveling unit |
| Made in China (parts imported) |
Auger diameter | mm | 400 |
Screed extension mode |
| mechanical joint |
Screed vibration frequency | Hz | 0-50 |
Screed heating mode |
| Gas heating, automatic ignition |
Fuel tank volume | L | 190 |
Hydraulic tank volume | L | 210 |
Centralized lubrication |
| Imported |
Display |
| D13 Color graphic display, Germany |
Controller |
| RC Series, Germany |
Material level unit |
| TYP Series, China made |
Tamper impact stroke | mm | Primary: 5, subsidiary: 0,3,6,9,12 |
Tamper impact times frequency | min | 0-1500 |
