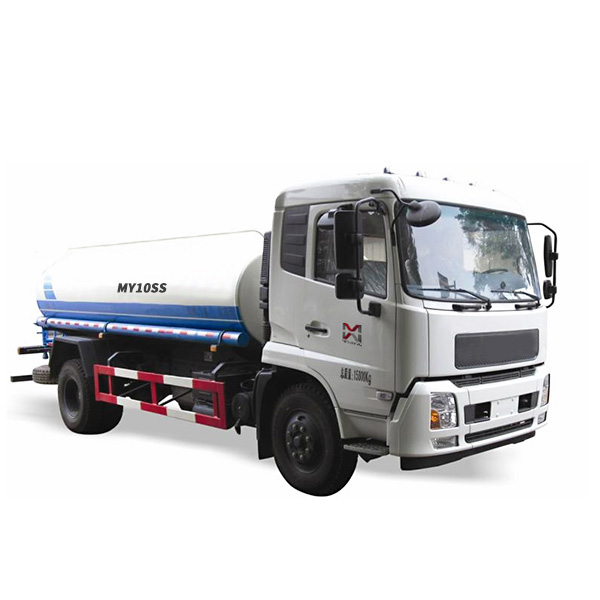

10m³ Street Sprinkler

Availability:
Quantity:
  • DFL1160BX1V

  • MINGYANG

Product Description

Product Introduction


MINGYANG street sprinkler incorporates diversified sprinkling and water transport functions depending on specific working environment and purpose and can be used for urban landscape watering and emergency firefighting.


Technical Specification


1

Overall dimensions

mm

8500×2490×3000

2

Chassis model


DFL1160BX1V

3

Gross mass

kg

15800

4

Curb mass

kg

6185

5

Rated carrying capacity

kg

9420

6

Engine


ISD210 50  ISB180 50

7

Power

kw

155  132

8

Wheelbase

mm

4700

9

Front/rear wheeltread

mm

1880/1800, 1860, 1820

10

Approach/departure angle

°

19/11

11

Front/rear overhang

mm

1430/2370

12

Container capacity

m3

10.1

13

Sprinkling width

m

14

14

Flushing width

m

≥24

15

Maximum speed

km/h

90


Product Features


▲ This sprinkler incorporates the front flushing and rear sprinkling functions. The water circuit is controlled by stainless steel ball valve and the additional dust-suppression spraying device is installed on the rear portion, featuring simple operations, high reliability and safety, and easy replaceability.


▲ This product features high working pressure. The working angles of all spray nozzles can be adjusted depending on actual situation to flush and sprinkle the road surfaces, featuring excellent cleaning performance.


▲ With provided firefighting hoses, this product can be used as mobile pump station for emergency firefighting purpose.


▲ The high pressure water monitor can be used for all-round aerial sprinkling operation under diversified conditions.


▲ It can be used to flush the isolation belts, road guiderails, and sidewalks and clean and water the garden trees.


▲ It’s additionally installed with a traveling data recorder with GPS function.


▲ The full-electronic control is applied for the sprinkling operations.


▲ The tank body is made of 4mm thick steel plates and the domestic renowned brand Hangzhou Wloong 80QZB-60/90 is applied.
