Performance Characteristics:
▲ Advanced design & optimized configuration, operable for paving graded road's surface.
▲ China made brand engine, powerful, low fuel consumption, low noise and high reliability and cold-starting.
▲ Independent feeding drive at LH & RH, removable and high-wearable auger blade for easy replacement.
▲ High-accuracy auto. Leveling sensors ensure mat's surface flatness.
▲ Unique dual-layer and stepless-extension screed changes paving width easily, screed bottom plate uses international advanced wearable material.
▲ Centralized lubrication system, charging lubricating grease to all high temperature bearings for machine reliability.
▲ Fuel-electrodynamic cleaning system supplies convenient operation.
▲ Electrical system has advanced progress technology, all controlled elements and wirings are numbered as per circuit diagram for fast trouble shooting.

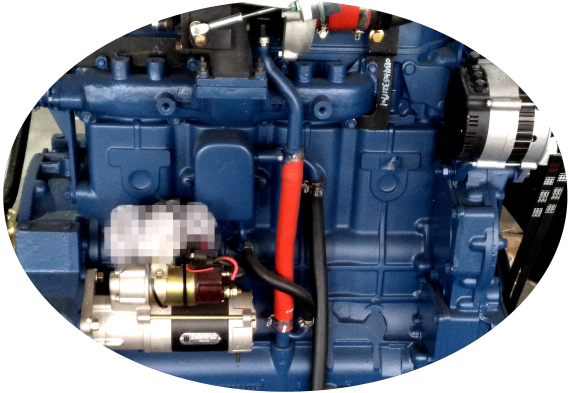

1. Engine
China made brand engine, powerful, good fuel economy, low noise and cold-starting.

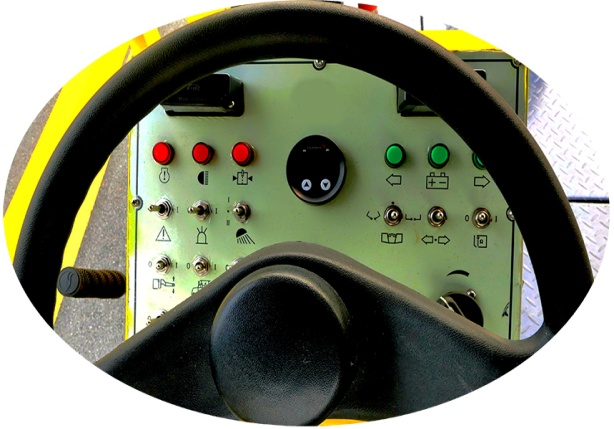

2. Operation
Load-sensing and hydraulic steering；ensures easy operation, easy readable instrument, reliable operating, elements, all wirings are numbered for fast trouble shooting.

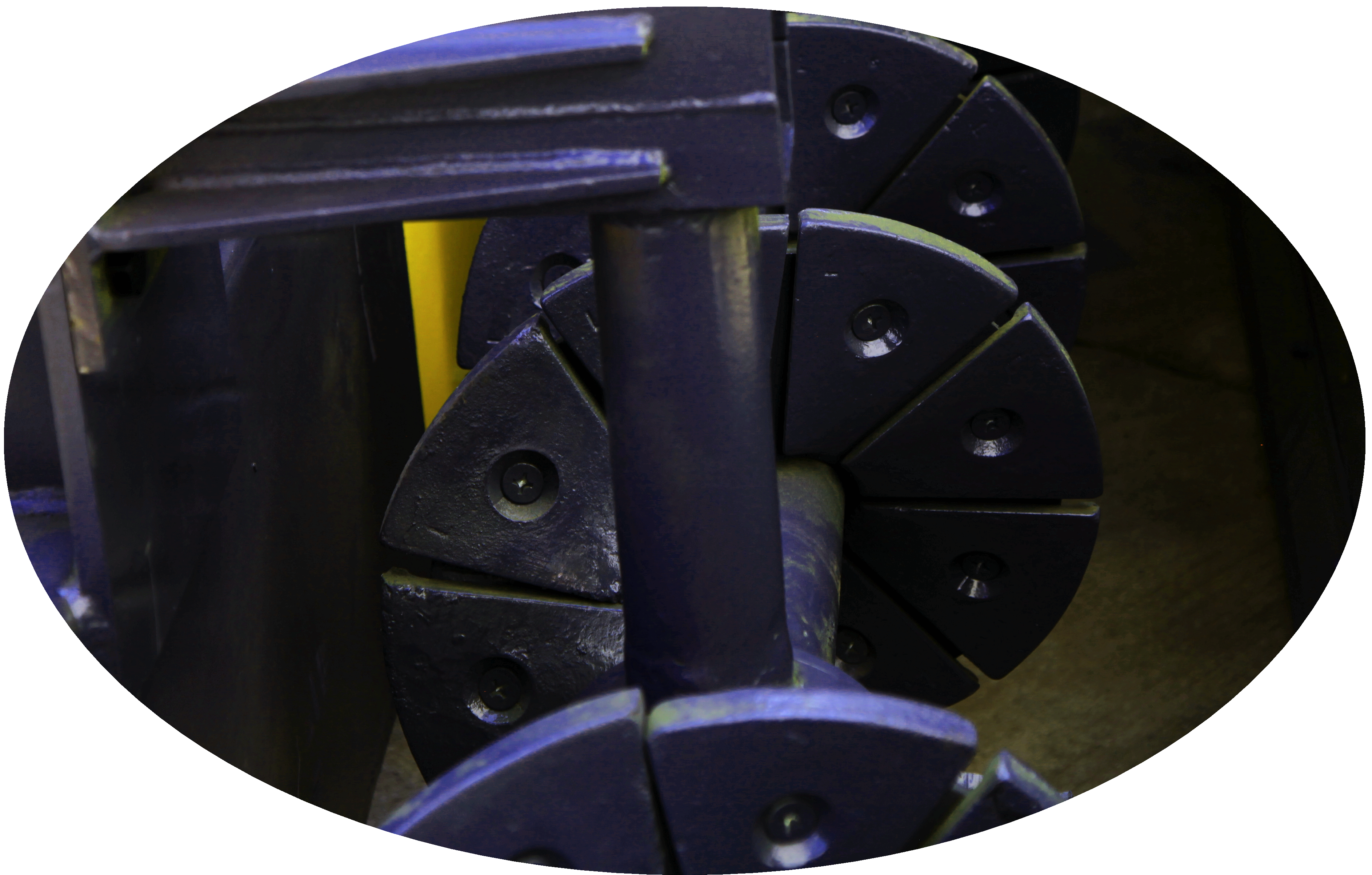

3. Auger Feeding System
Independent feeding drive at LH & RH, patent application of high-wearable combined-type blade, flexible control of multi-disc for stable auger rotation and small impact.

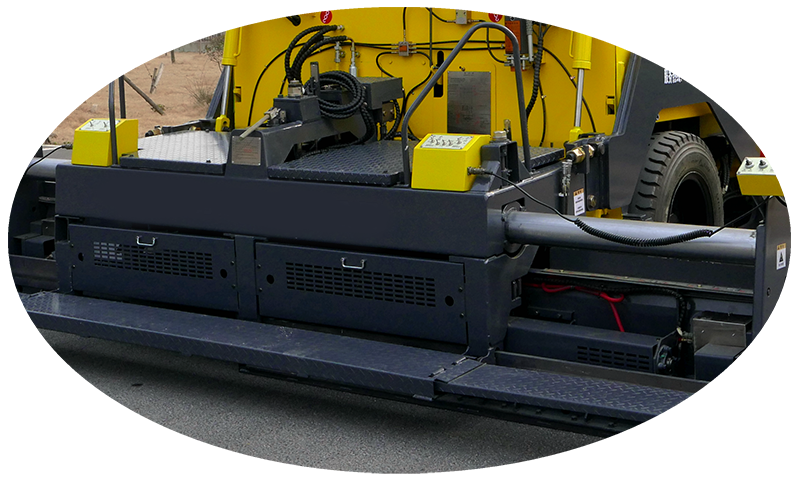

4. Dual-Layer Screed
Hydraulic stepless-extension, high-frequency vibration, easy adjustment of level difference and camper, fuel heating, auto. Ignition, enough rigidity and strong torsion resistance, application of patents

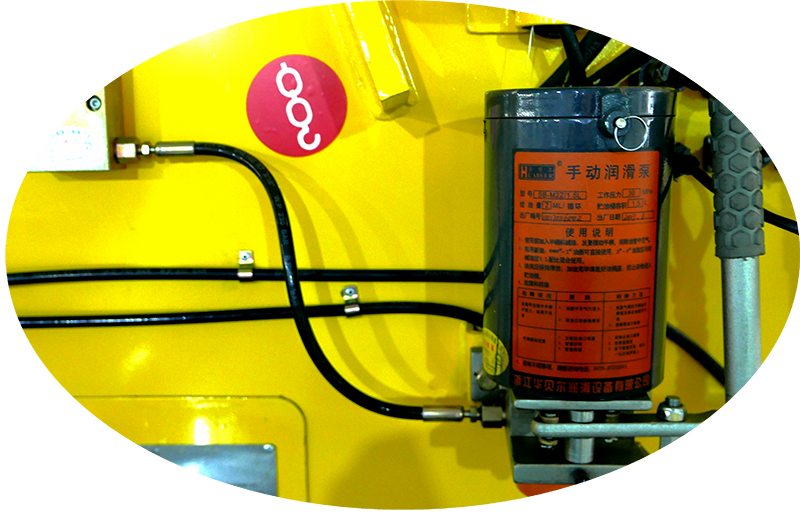

5. Centralized Lubrication
To charge lubricating grease to all high-temperature bearings at any time for reliability and ease of operation.
Description | Unit | MYL60A |
Paving width | mm |
2800-5500 |
Max. paving thickness | mm |
250 |
Theoretical productivity | t/h |
300 |
Paving speed | m/min |
3.07-9.16 |
Running speed | km/h |
2.30-16.84 |
Drive system |
| mechanical /hydraulic |
Machine weight | t | 12 |
Engine model & power |
|
QSB3.9-C110-30，DF Cummins，81kw |
Track shoe width | mm |
Wheel type |
Hopper capacity | t | 12 |
Auto. leveling unit |
| Made in China |
Auger diameter | mm | 350 |
Screed extension mode |
| Hydraulic extension, mechanical joint |
Screed vibration frequency | Hz | 0-50 |
Screed heating mode |
| Far infrared heating, automatic ignition |
Fuel tank volume | L | 200 |
Hydraulic tank volume | L | 115 |
Centralized lubrication |
| Made in China |
