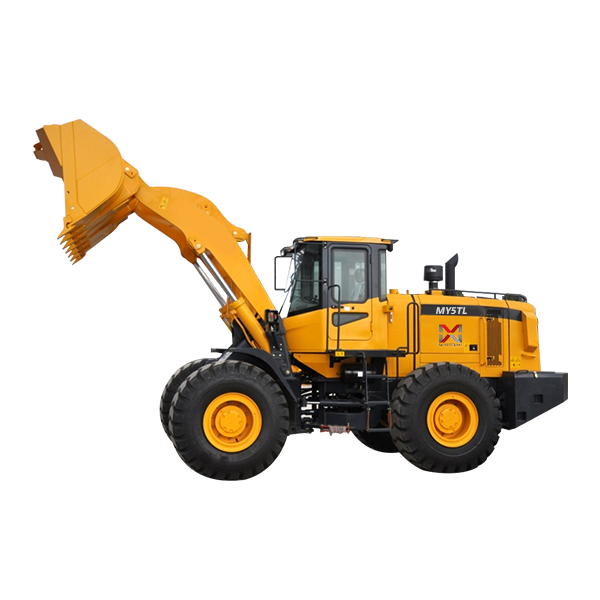

▲ Overall Dimension |
1 | Length (with bucket on ground) | 8100(mm) |
2 | Width (to outside of wheels) | 2800(mm) |
3 | Bucket width | 2946(mm) |
4 | Height (To the top of the cab) | 3450(mm) |
5 | Wheelbase | 3100(mm) |
6 | Tread | 2200(mm) |
7 | Min. ground clearance | 450(mm) |
▲ Main Technical Specification |
1 | Rated load | 5000(kg) |
2 | Operating weight | 16500(1±5%) (kg) |
3 | Rated bucket capacity | 2.8(m3)，optional 2.2-4.5 (m3) |
4 | Max. breakout force | 165(kN) |
5 | Max. dump clearance | 3140(mm) |
6 | Dump reach | 1180(mm) |
7 | Dump angle at any position | ≥45o |
8 | Digging depth(with bucket bottom horizontal) | 27(mm) |
9 | Min. turning radius |
| (1) Outside of bucket | 6689(mm) |
(2) Outside of rear wheel | 5970(mm) |
10 | Pivot angle frame | 38o |
11 | Oscillating angle of rear axle | +11o |
12 | Lifting time of bucket | ≤6.2(sec.) |
13 | Lowering time of bucket | ≤3.8(sec.) |
14 | Dumping time | ≤1.8(sec.) |
15 | Traveling speed(km/h)，2 forward and 1 reverse |
| (1) 1st gear（forward/reverse） | 11.7/15.9 |
(2) 2nd gear forward | 40.3 |
▲ Diesel Engine |
1 | Model | Chinese Engine WD10G220E23 |
2 | Type | Direct injection. Turbocharge. Water cooling |
3 | Rated output | 162(kw) |
4 | Inter-bore of cylinder/stroke | 126/130(mm) |
5 | Displacement of cylinder | 9.726(L) |
6 | Model of starting motor | KB-24(V) |
7 | Power of start motor | 7.5(kw) |
8 | Voltage of starting motor | 24(V) |
9 | Rated speed | 2000(r/min.) |
10 | Max. torque | >900(N.m) |
11 | Starting type | Electric |
12 | Min. specific fuel consumption | <220g/kw.h) |
13 | Engine specific oil consumption | 0.95-1.77(g/kw.h) |
14 | Net weight | 1000(kg) |
▲Transmission System |
▲ Hydromedia Transmission |
1 | Model | WL50F |
2 | Type of torque converter | 4-elements.single stage |
3 | Torque ratio | 4 |
4 | Cooling type | Pressure oil circulating |
5 | Type of transmission case | Power shift, spur gear constant-mesh |
6 | Gear shift position | 2 Forward and 1 reverse gears |
▲ Axle and Tire |
1 | Type of main reducer | Spiral bevel gear, single stage |
2 | Gear ratio of main reducer | 4.625 |
3 | Type of final reducer | Single stage planetary |
4 | Gear of ratio of final reducer | 4.929 |
5 | Gear ratio | 22.795 |
6 | Max. drawing force | 150(kN) |
7 | Size of tire | 23.5-25-16(PR) |
▲ Working Device Hydraulic System |
1 | Model of oil pump | JHP2080S |
2 | System pressure | 18(MPa) |
3 | Model of Mutichannel conversion valve | GDF-32-YL18 |
4 | (D*L)Dimension of lifting cylinder | Ф160*90*810(mm) |
5 | (D*L)Dimension of tilting cylinder | Ф180*90*563(mm) |
▲ Steering System |
1 | Type | Middle articulated frame. Full-hydraulic Steering |
2 | Model of steering pump | JHP2080S |
3 | Model of redirector | TLF1-E1000B+FKB6020 |
4 | Model of priority valve | YXL-F250F-N7 |
5 | System pressure | 16(MPa) |
6 | Dimension of steering cylinder | Ф90*400 (mm) |
▲ Brake System |
1 | Type of traveling brake | Caliper disc brake Air over oil activate 4 wheel brake |
2 | Air pressure | 6-7.5(kgf/cm2) |
3 | Type of parking brake | Hand brake Flexible shaft control clamp brake |
▲ Oil Capacity |
1 | Fuel(diesel) | 250(L) |
2 | Engine lubricating oil | 24(L) |
3 | Oil for converter and gear box | 45(L) |
4 | Oil for hydraulic system | 180(L) |
5 | Oil for driving axles（F/R） | 36(L) |
6 | Oil for final reducer | 14(L) |
7 | Oil for brake system | 3(L) |
