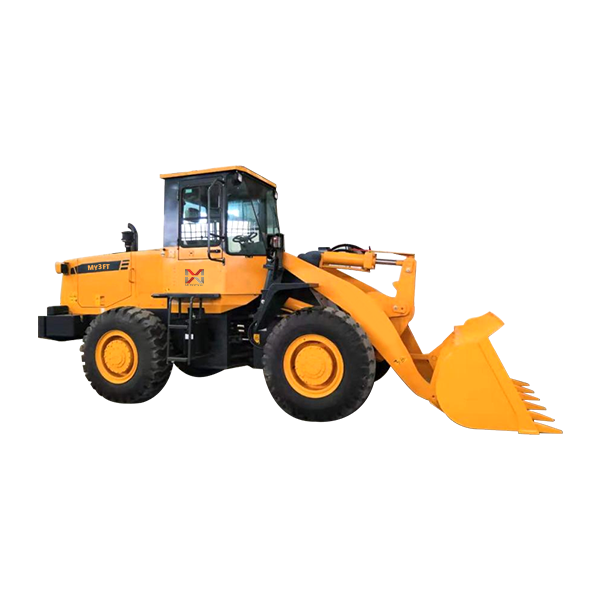

| ▲ Overall Dimension |
1 | Length (with bucket on ground) | 6983 mm |
2 | Width (to outside of wheels) | 2305 mm |
3 | Bucket width | 2430 mm |
4 | Height (to the top of the cab) | 3104 mm |
5 | Wheelbase | 2750 mm |
6 | Min. ground clearance | 360 mm |
| ▲ Technical Specification |
1 | Rated load | 3000 kg |
2 | Operating weight | 10200 kg |
3 | Rated bucket capacity | 1.7 m3，optional 1.4-3.2 m3 |
4 | Max. dump clearance | 2934 mm |
5 | Dump reach | 1043 mm |
6 | Min. turning radius(wheel) | 5185 mm |
| ▲ Diesel Engine |
1 | Model | Weichai |
2 | Type | Directinjection .Turbocharge. Water cooling |
3 | Rated output | 92 kw |
4 | Total exhaust of cylinder | 6.87 L |
5 | Rated speed | 2200 (r/min) |
6 | Max. torque | 440(N.M)@1500 (r/min) |
| ▲ Transmission System |
1 | Model | WL30F |
2 | Type | Power shift |
3 | Gear shift position | 3F、 3R |
4 | Speed（F/R） | 6.4/8.1、13.2/16.8、32/39 |
5 | Max. drawing force | 96 kN |
6 | Size of tire | 17.5-25-12PR |
| ▲ Working Hydraulic System |
1 | Model of oil pump | CBGj2100 (SAE) |
2 | System pressure | 16MPa |
3 | Model of Muti-way directional valve | GDF32D2 |
4 | Pilot valve |
|
| ▲ Steering System |
1 | Model of steering pump | CBGj2050 |
2 | Model of redirector | BZZ1-E400C+FKA-143020 |
| 3 | System pressure | 14 (MPa) |
| ▲ Brake System |
1 | Type of traveling brake | Caliper disc brake |
2 | Air pressure | 0.7~0.8 (MPa) |
3 | Type of parking brake | clamp brake |
| ▲ Oil Capacity |
1 | Fuel (diesel) | 130 L |
2 | Engine lubricating oil | 17 L |
3 | Oil for converter and gear box | 35 L |
4 | Oil for hydraulic system | 120 L |
5 | Oil for driving axles（F/R） | 16/15 L |
