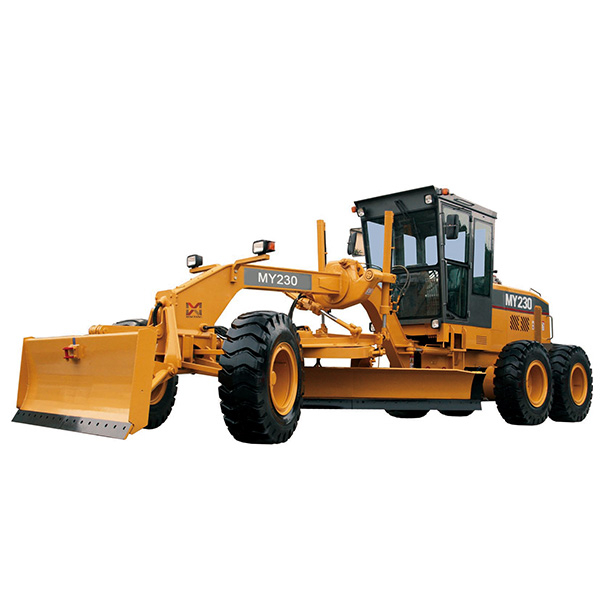

MY230 Motor Grader

Availability:
Quantity:
  • MY230

  • MINGYANG

Product Description


Product Feature

▲Linear, water-cooled, four-stroke, turbocharged central cooling, high pressure common rail, SC7H170G3 engine.


▲Electric hydraulic control, power shift, 6 forward gears and 3 back gears.


▲Fully airlocked, low noise, ROPS/FOPS cabin, featuring standard eco-friendly hot and cold air conditioning, and MP3 player.


▲Open hydraulic system (Husco control valve) adjustable blade control system.


▲The machine frame with completely sealed box-structure could be installed with various working devices.


▲Lends a single-lever Joy stick for fast and responsive speed control.


▲Load a "non-rotating (non-slip) differential", which features an automatic lock/release function.


▲3658mm blade.

Product Parameter(Specification)

Total weight

14500kg

Overall width

2600mm

Min. turn radius7500mmBlade length3658mm

Front axle

4350kg

Overall height

3330mm

Arched height of blade610mmMax. tilting angle of blade90°

Rear axle

10150kg

Front axle to rear axle

(wheel base)

6453mm

Rotating angle of blade360°Cutting angle adjusting rangeof blade30°~65°

Rated power of engine

125kw

Middle axle rear axle

(wheel base)

1550mm

Max. traction

90kN

Wheel base left to right

2250mm

Blade cutting force (ISO)

7030kg

Max. front wheel steering angle

50°

Max. articulated steering angle25°Overall length8770mm
Max. side-extending length (left/right)2980mm/3310mm
