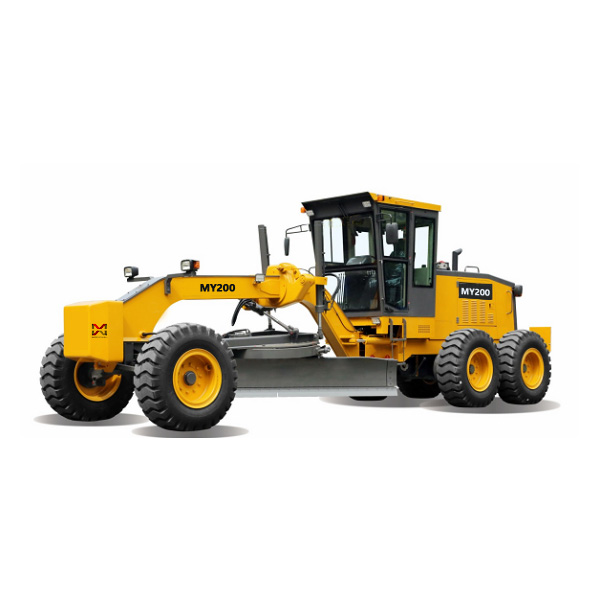

MY200 Motor Grader

Availability:
Quantity:
  • MY200

  • MINGYANG

Product Description

Product Feature

▲Vertical inline, water-cooling 4-stroke, turbo-charged central-cooling, high-pressure common-rail, shangchai diesel engine.


▲Hang Chi(Advance) 6WG180 transmission with electro-hydraulic control, power shift,6 forward gears and 3 backward gears.


▲Completely sealed, low-noise, ROPS/FOPS cabin with standard configuration of environment- friendly hot cool A/C, Mp3 player.


▲Open hydraulic system(Husco control valve), adjustable blade control system.


▲The machine frame with completely sealed box-structure could be installed with various working devices.


▲Single-lever Joy stick could control the speed swiftly and sensitively.


▲High-loading " No-SPIN"(anti-slipping) differential with automatic locking/releasing function.


▲3962mm(13ft) blade.

Product Parameter(Specification)

Item

Unit

Data


Operation weight (standard model)

Total weight

kg/lb

15500/34172

Front axle

kg/lb

4750/10472

Rear axle

kg/lb

10750/23700


Engine

Model

ShangChai SC9DK210G3

Rated power

kw/hp

155/210

Rated rotation

r/min

2200

Max. traction

kN

120

Bladecutting force lade

kg/lb

7100/15648

External dimensions

LxWxH

mm/ft

8850x2600x3330 29x8.5x11

Wheelbase

Front axle to rear axle

mm/ft

6340/20.80

Middle axle rear axle

mm/ft

1550/5.08

Tread distance

mm/ft

2250/7.38

Steering system

Max. front wheel steering angle


50°

Max. articulated steering angle


25°

Min. turn radius

mm/ft

7500/24.6

Blade

Length

mm/ft

3962/13.00

Arched height

mm/ft

610/2.00

Max. tilting angle


90°

Rotating angle


360°

Cutting angle adjusting range


30°~65°

Max. lift above ground

mm/ft

455/1.50

Max. digging depth under ground

mm/ft

495/1.62

Max. side-extending length (left/right)

mm/ft

3132/3462

10.27/11.35
