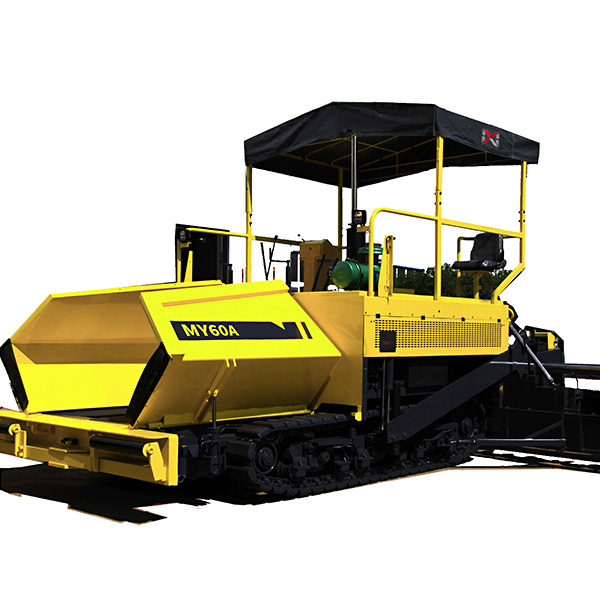

MY60A Crawler Asphalt Paver

Availability:

Quantity:



Inquire Add to Basket

Model:
MY60A
Brand:
MINGYANG

Product Description

▲ MY60A Crawler Asphalt Paver with more than 30 years of innovation and development, reaches international advanced level based on technology transferred from abroad. The machine is used to pave asphalt for highway, urban road, plaza, and parking lots etc.. It is the ideal machine for road construction.

▲ The machine is equipped with hydraulical extension dual-layer screed and automatic leveling unit and can achieve good roads flatness and high density. The wearable parts are made from advanced wear resistance material to ensure durability.

Performance Characteristics:

▲ Advanced design & optimized configuration, operable for paving graded roads' surface.

▲ China made brand engine, powerful, low fuel consumption, low noise and high reliability and cold-starting.

▲ Independent feeding drive at LH & RH, removable and high-wearable auger blade for easy replacement.

▲ High-accuracy auto. Leveling sensors ensure mat's surface flatness.

▲ Unique dual-layer and stepless-extension screed changes paving width easily, screed bottom plate uses international advanced wearable material.

▲ Centralized lubrication system, charging lubricating grease to all high temperature bearings for machine reliability.

▲ Fuel-electrodynamic cleaning system supplies convenient operation.

▲ Electrical system has advanced progress technology, all controlled elements and wirings are numbered as per circuit diagram for fast trouble shooting.

Product Features：

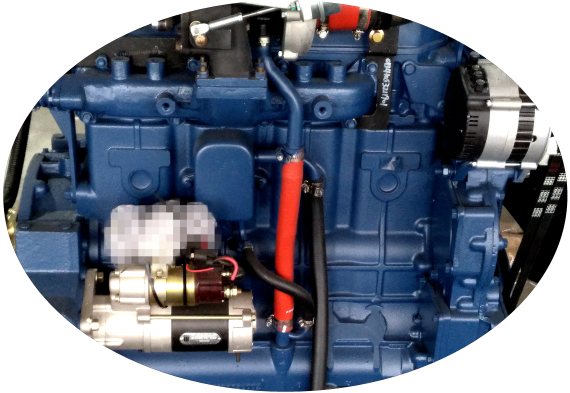

1. Engine

China made brand engine, powerful, good fuel economy, low noise and cold-starting.

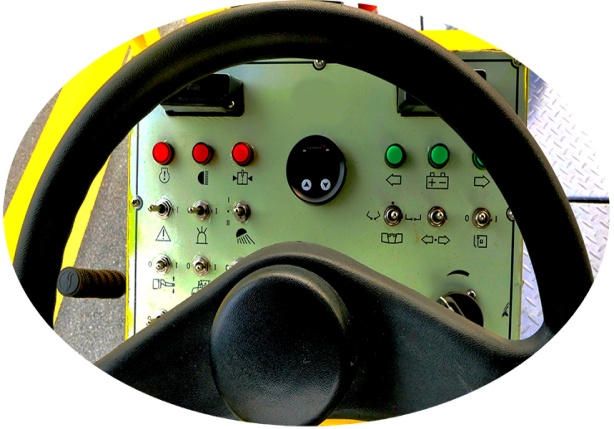

2. Operation

Load-sensing and hydraulic steering；ensures easy operation,easy readable instrument, reliable operating, elements, all wirings are numbered for fast trouble shooting.

3. Auger Feeding System

Independent feeding drive at LH & RH, patent application of high-wearable combined-type blade, flexible control of multi-disc for stable auger rotation and small impact.

4. Dual-Layer Screed

Hydraulic stepless-extension, high-frequency vibration, easy adjustment of level difference and camper, fuel heating, auto. Ignition, enough rigidity and strong torsion resistance, application of patents.

5. Centralized Lubrication

To charge lubricating grease to all high-temperature bearings at any time for reliability and ease of operation.

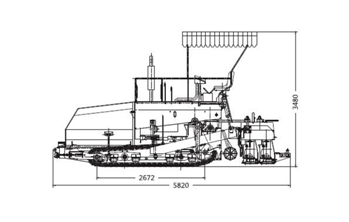

技术参数

Specification:

Description	Unit	MY60A
Paving width	mm	2500-6000
Max. paving thickness	mm	250
Theoretical productivity	t/h	220
Paving speed	m/min	2.03-6.07
Running speed	km/h	1.55-4.62
Drive system		mechanical / hydraulic
Machine weight	t	11-12
Engine model & power		QSB3.9-C110-30，DF Cummins, 81kw
Track shoe width	mm	300
Hopper capacity	t	12
Auto. leveling unit		Made in China
Auger diameter	mm	340
Screed extension mode		Hydraulic extension, mechanical joint
Screed vibration frequency	Hz	0-50
Screed heating mode		Far infrared heating, automatic ignition
Fuel tank volume	L	118
Hydraulic tank volume	L	110
Centralized lubrication		Made in China
