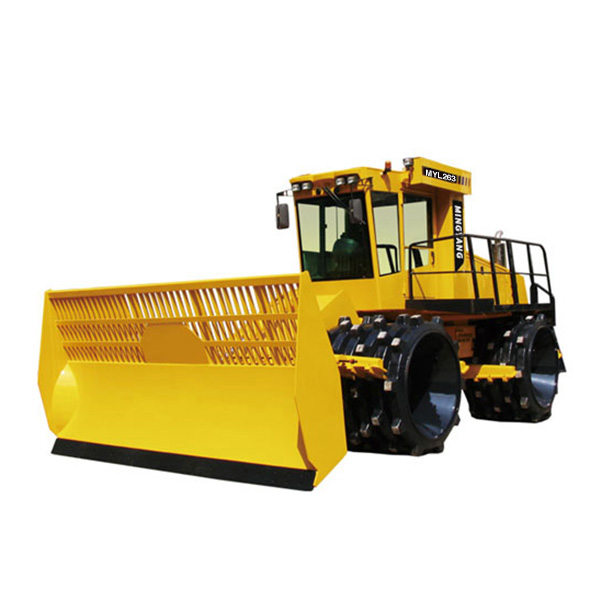

▲ The refuse compactors are essential equipments for refuse landfill site. It has the functions of pushing, spreading, pulverizing demolishing and compacting the refuse.
▲ Using this refuse compactor will help to save the land, protect the environmental and extend the operating life of the refuse landfill site.
▲ SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
▲ Torque converter and power gearshift transmission are applied on four wheels.
▲ The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four
compaction wheels will avoid the wire wrap-around and keep the wheel clean.
▲ Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control，high efficiency and energy economy.
▲ The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
▲ The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.
▲Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
▲ Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.
Product Parameter（Specification）
Model | Unit | MYL283 | MYL263 |
Operating mass | kg | 28000 | 26000 |
Rolling width | mm | 3430 | 3430 |
Travel speed | km/h | 4.41/7.1/10.87 | 4.41/7.1/10.87 |
Gradeability | % | 100 | 100 |
Dozer blade height | mm | 1880×3800 | 1880×3800 |
Wheelbase | mm | 3500 | 3500 |
Clearance | mm | 490 | 490 |
Wheel width | mm | 1195/970 | 1195/970 |
Wheel diameter (front / rear, out teeth) | mm | 1620/1620 | 1620/1620 |
Teeth No. per wheel (front / rear) |
| 50/40 | 50/40 |
Diesel engine model |
| SC9DK260G3 | SC9DK260G3 |
Diesel engine power | kw | 192 | 192 |
Overall dimensions | mm | 8150×3800×3810 | 8150×3800×3810 |
Overall dimensions | mm | 8150×3400×3810 | 8150×3400×3810 |
