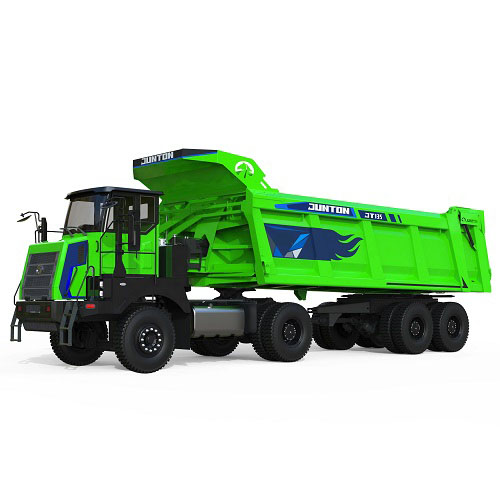

MY165A Multi-Wheel Drive Mining Truck Basic Configuration |
Environmental Information
| Machine Model | MY165A |
Machine Name | Off-highway multi-wheel drive articulated mine trucks |
Vehicle Classification | construction machinery |
Environmental Information Label Location | Right side of frame longitudinal beam |
Performance Parameters
| Driving Form | 8×6 |
Overall Mass (Kg) | 47500 |
Rated Load Mass (Kg) | 100000 |
Maximum Speed Unladen/Fully Loaded (Km/h) | 46 |
Theoretical Maximum Climb (%) | 36 |
Minimum Turning Diameter (m) | 18.5 |
Approach Angle (°) | 23 |
Departure Angle (°) | 45 |
Dimensional Parameters | "Overall Machine Dimensions:
L×W×H (Mm)" | 14500×4550×4450 |
Minimum Ground Clearance (Mm) | 400 |
Motor
| Model | WP17TG770E304 |
Displacement (L) | 16.6 |
Rated Power/Speed (KW/r/Min) | 566/1900 |
Maximum Net Torque/Speed (Nm/r/Min) | 3300/(1200-1600) |
Emission Standard | GB20891-2014 Non-road three stages |
Transmission
| Model | 8DSS330 |
Structural Form | Single box with three intermediate shafts |
Gear Ratio | 8.46/6.41/4.64/3.33/2.37/1.55/1/0.71 Reverse gear 8.02 |
Clutch (In Car Gearbox) | Structural Form | Engine to Transmission Remote Connection, Two-Piece, Ceramic |
Second Bridge
Third Bridges
Fourth Bridges
| Type | drive axle |
Rated Load (Kg) | 40000 |
Form Of Braking | Cam Drum Brake |
Front Axle
| Type | Integral non-driven steering axle |
Rated Load (Kg) | 25000 |
Form Of Braking | Cam Drum Brake |
Fig. Change One's Stance | Forms Of Assistance | Fully hydraulic steering |
| Driving Brake Form | Dual circuit compressed air drum brake |
Parking Brake Type | Spring loaded drum brakes |
Auxiliary Brake | turbo retarder |
Suspensions
| Front Axle Suspension | oil-air separation type oil-air suspension |
Second Axle Suspension | oil-air separation type oil-air suspension |
Three Bridges, Four Bridges | Steel plate spring + maintenance-free balance suspension + upper and lower split V-type thrust rod structure |
Cabs | Type | Mining cab (right-hand drive) |
Wagon
| Length x Width x Height (Mm) | 10000×3500×2500 |
Compartment Volume (m3) | Paperback 85; Stacked 100; |
Wheel | Tire Model | 16.00R25 E-3 ★★★ Block pattern |
Rim Model | 11.25-25 spoke plate 20mm |
Unloading Systems | Forms Of Unloading | Cylinder flat push |
Accessibility | Standard with emergency steering, hydrodynamic retarder, 4-camera video system |
Advantages
| "1. High safety: flat push unloading, unloading does not need to lift the cargo box, there is no unloading rollover phenomenon;
2. High passability: articulated structure connection, through a variety of complex road conditions, the tires are in full contact with the ground, the driving force is fully utilized;
3. High maneuverability: multi-wheel drive, rear double axle with steering, the turning radius of the whole vehicle is only 9.5 meters;
4. Large capacity: the cargo box is stacked with a large amount of square meters;
5. low failure, high attendance: flexible connection, effectively alleviate the big impact, multi-wheeled uniform tire life longer;"
|
